AVS-500TS Touch Screen

The AVS-500TS Touch Screen control is fully customizable and is a leader in poultry house ventilation that can be outfitted for many different applications

It has 9 "Modes" that can be saved, changed and recalled at the touch of a button.

The control has history functions that will record temperature, water, feed and activity of most outputs including Brooder/Heater, Sidewall Fans, Tunnel Fans, Vent and Tunnel Unit. Record intervals are user adjustable from 1 to 90 minutes.  This information can be displayed in graph form.

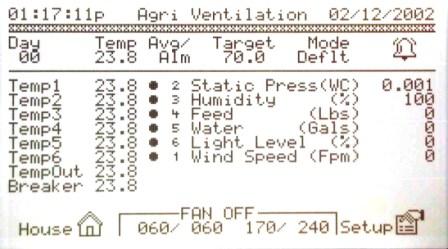

Functions are easy to access with the graphical user panel and TOUCH SCREEN design.  Heaters, Brooders, Sidewall Fans, Tunnel Fans, Vent Machine, Tunnel Machine, Lights, and Alarm settings can be accessed by pressing the appropriate picture on the house screen.

The control is currently  configured with a Touch Screen Display, up to 8 temperature sensors, and can monitor static pressure, humidity, wind speed, feed and water.

The control is pre-wired with 30 amp Mechanical relays and backup thermostat connections for ease of installation.

In the event of a failure the control is backed up by fail-safe relays to turn on fans and open the vents and tunnel curtain without thermostats.

Click here to download a PDF manual for the Touch Screen
